Jiaxin sander is one of the world leader in wet grinding technology, all devices are based on customer requirements tailored to customers: including laboratory to industrial production and complete systems engineering, our aim: to provide users improve product performance, increase production capacity, reduce energy consumption, lower production costs, to join hands with customers to enhance international competitiveness of products!
Rod horizontal sand mill series
Single-pass grinding
Suitable size: 50um-5um
Grinding media size: ≧ 0.9mm
The model uses a flexible, easy to clean, easy maintenance, suitable for medium viscosity, high-volume products

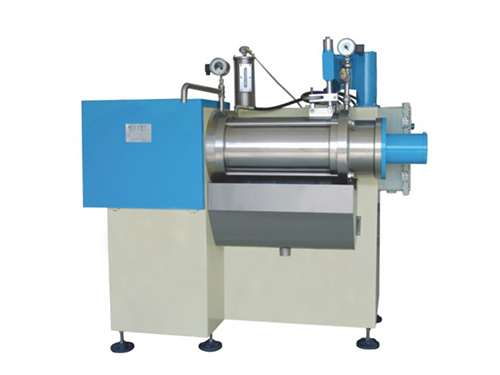

Model：JX6-NT30L
Uses：Ceramic ink, battery materials, titanium dioxide, inkjet and other nanomaterials
Features:Suitable grinding fineness 50nm ~ 10um
Profile:Nano-sand mill, machine appearance concise, compact, easy to operate.
It combines all the advantages of horizontal sand mill, the most fine grinding, the particle size distribution of the narrowest.
Sealing method; cartridge double mechanical seal, with a variety of styles of different material. Solvent blending with the material for the mechanical seal cooling fluid, to prevent the pollution of the material.
Pressure automatic protection devices to ensure grinding chamber pressure is stable, all-round electrical automatic protection, explosion-proof motors and anti-static V-belt, more security.
Application and mass production of machinery, continuous delivery pump for large quantities of a single color of the product, and more cost-effective.
Order Hotline：00769-22718809
|
Model
|
Chamber Volume(L)
|
Motor Power （KW）
|
Producionrata (kg/Hr)
|
Medium Size
|
Beads filling capacity(%)
|
Weight(kg)
|
Weasurement L×Ｗ×Ｈ（mm）
|
|
JX6-NT30L
|
30
|
37
|
80~1000
|
0.2~2.0
|
60~85
|
1200
|
1600×900×1600
|
|
JX6-NT60L
|
60
|
45
|
120~1500
|
0.2~2.0
|
60~85
|
1580
|
1700×900×1800
|
1）20μm-50nm fineness solve the problem 2) resolve not change color purity without metal contamination problem 3) solve problems yielding an abrasive power consumption
4) resolve plugging leak sealing liquid separator downtime 5) solve the frequent replacement of core parts and the use of stable life issues 6) resolve timely and professional service issues
