Jiaxin sander is one of the world leader in wet grinding technology, all devices are based on customer requirements tailored to customers: including laboratory to industrial production and complete systems engineering, our aim: to provide users improve product performance, increase production capacity, reduce energy consumption, lower production costs, to join hands with customers to enhance international competitiveness of products!

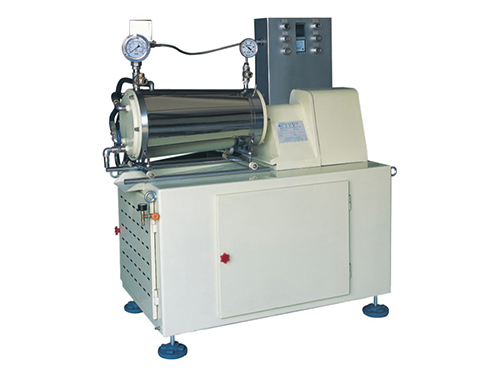

Lab horizontal sand mill series
Single-pass grinding
Suitable size: 20um-2um
Grinding media size: ≧ 0.9mm
The model uses a flexible, easy to clean, easy maintenance, suitable for medium viscosity, high-volume products
Model: JX5-B30L
Uses: automotive paint, industrial paint, a variety of nano-products Grinding
Features: Suitable for grinding 2um ~ 30um particle size in high demand product
Profile:Cone horizontal sand mill is currently sub-micron ultra-fine grinding applications in the field of the best black sand mill. Mix can bring the whole grinding cylinder axis in the grinding media, high efficiency centrifugal separation system can be well separated from the product and grinding media. This ensures that the machine for the good functioning of highly viscous products. According to the specific requirements of the product, the machine can be designed (such as polyurethane, ceramic, wear-resistant steel, tungsten carbide) Order Hotline according to different materials: 0769-22718809
|
Model
|
Chamber Volume(L)
|
Motor Power （KW）
|
Producionrata
(kg/Hr)
|
Medium
Size
|
Beads filling
capacity(%)
|
Weight(kg)
|
Weasurement
L×Ｗ×Ｈ（mm）
|
|
JX5-20L
|
20
|
15/18.5
|
50~100
|
0.8~2.0
|
60~75
|
650
|
1190×760×1600
|
|
JX5-25L
|
25
|
18.5/22
|
100~200
|
0.8~2.0
|
60~75
|
700
|
1350×800×1600
|
|
JX5-30L
|
30
|
22
|
120~260
|
0.8~2.0
|
60~75
|
750
|
1380×800×1600
|
|
|
|
|
|
|
|
|
1）20μm-50nm fineness solve the problem 2) resolve not change color purity without metal contamination problem 3) solve problems yielding an abrasive power consumption
4) resolve plugging leak sealing liquid separator downtime 5) solve the frequent replacement of core parts and the use of stable life issues 6) resolve timely and professional service issues
